Ruger Max-9 provided for testing & evaluation by Ruger. Ruger did not see this video prior to publication. This is an optics-install / zero-check howto — not a multi-month durability T&E of the pistol or the dots. Specs and torque values as taped; verify today’s manuals and listings before you buy or wrench.

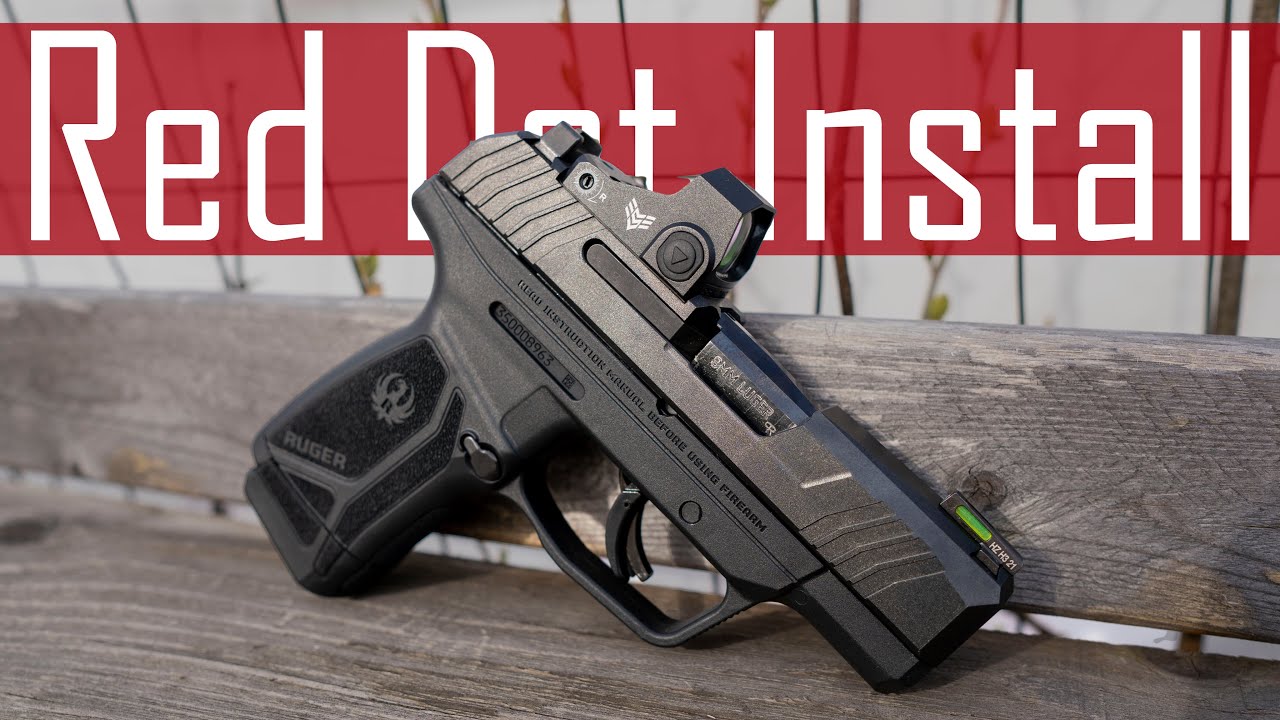

Hey channel fans and family — if you grabbed a Ruger Max-9 for the value and now you want a red dot on it, this one’s for you. In the video we walk the carry-optics cut, which footprints actually fit, and a step-by-step install (with a quick co-witness / range check) using a Swampfox Sentinel.
Gear / Idea Lists: SlavGuns Amazon. Featured optic in this video: Swampfox Sentinel. Torque tools: Fix It Sticks All-in-One kit. Precision accessories (code SlavGuns on Anarchy-manufactured only): Anarchy Outdoors. Support the channel: join on YouTube.
Why the Max-9’s optic cut matters
When Ruger announced their first optics-ready carry gun, it stirred things up for a reason. The Max-9 is a double-stack 9mm carry pistol — in the video we call out capacity as either 13 or 11 rounds depending on the magazine (12- or 10-round mags), with an MSRP just under $500 and a street price a bit below that. Full pistol rundown is in the earlier Max-9 video on the channel playlist.
The big carry-optics win: you can run a red dot and keep the rear iron, and you can co-witness the dot with those sights. The slide is cut for the JPoint / Shield footprint — the smaller subcompact pattern, not your typical Trijicon RMR, Docter, or larger Vortex-style footprints.
Dots that fit: Romeo Zero and Swampfox Sentinel
Two favorites in that footprint from the video:
- Sig Romeo Zero — already shown in earlier Max-9 clips
- Swampfox Sentinel — the one we install here; also offered in a fully automatic brightness model that adjusts to ambient light
Both Swampfox options in that lineup were called out with a nice 3 MOA dot and solid build quality for the class. (Separate deep-dive videos on those dots were planned and may already be linked on the channel if you’re watching later.)
Tools and what’s in the box
Out of the box the Max-9 ships with a cover plate over the optic cut. Important: when you mount a red dot on this gun, you do not remove the rear sight — the plate is just the cover.
- Plate is held by two Torx T10 bolts
- Ruger includes the needed wrenches
- I highly recommend a real toolkit — in the video that’s the Fix It Sticks all-in-one torque driver kit (common bits, well made; Squat Squad members get a special discount via the join path)
Install steps (Shield / JPoint pattern)
- Remove the cover plate — back out the two T10s (righty-tighty / lefty-loosey), don’t lose the screws, set the plate aside or back in the box.
- Drop in the two pins — inside the box is a small envelope with two pins. Seat them in the rear two corners of the cut. They should drop in with no force. Those pins help anchor the optic. They work with most JPoint/Shield-cut sights.
- Holosun exception: if you’re using the HS407K / HS507K, you do not use those two pins — leave them with the packaging. Once the pins are in for a Shield-pattern optic, you can leave them even if you pull the optic later and put the cover back on (unless you’re switching to those Holosuns).
- Wipe oil off the top of the slide so it doesn’t migrate into the optic — especially important on bottom-battery designs.
- Battery + dry fit — install the battery first if it feeds from the bottom, then dry-fit the optic so it sits snug. The Sentinel in the video came with a real battery cover plate (not just a sticker).
- Bolts — the gun is threaded for the common M4 × 0.7 mm pattern that ships with most of these dots (true for both the Romeo Zero and the Sentinel). Thread them in first; don’t final-torque yet. Swampfox also sells a bolt kit with a variety of lengths if you need options.
Torque, Loctite, and not wrecking the optic
Wrong torque is how dots lose zero — or get damaged. Too loose and point of aim walks; too tight and you can crack boards / electronics in these tiny footprints. Specs differ by optic. From the video:
- Sig Romeo Zero: about 9 in-lbs
- Swampfox Sentinel: about 15 in-lbs
That’s why a small torque driver matters. The Fix It Sticks all-in-one mini driver called out here measures roughly 6–25 in-lbs (versus their larger orange driver at 15–65), which is the right window for pistol dots.
Blue (non-permanent) Loctite is fine per the Ruger manual to help screws resist walking under recoil — but some optic makers explicitly say not to use it, so follow the optic maker when they conflict. If bolts bottom out before the optic is snug, pull them, file a little length off, or find shorter screws — don’t just keep cranking.
Co-witness, confirm zero, and going back to irons
Power the optic on, then adjust so you can co-witness with the factory irons — a solid starting point, and something you can’t do on every optics-ready carry gun. In the video the Sentinel’s window looked big once it was up. Then get to the range: shoot groups off a bag and fine-tune. Periodically re-check bolt torque (especially if you skipped Loctite) — a lot of “my red dot lost zero” complaints are just loose mounts.
Side note from the video: if you’re constantly drifting irons on every gun, look at technique before blaming the hardware.
Want irons only again? Put the stock cover plate back on with the original T10s and torque those to about 26 in-lbs as called out in the clip.
Bottom line
That’s the Max-9 red-dot path: Shield/JPoint footprint, keep the rear sight, co-witness if you want, torque to the optic’s spec, and don’t skip the pins unless you’re on those Holosun K models. Process is similar on a lot of other optics-ready pistols once you know the footprint and torque. Clean/lube follow-ups and the original Max-9 overview live on the channel playlist.
